• 30,000 hour life
• High efficiency 85lm/W
• 3000, 4000K and 6000K colour options
• IP20 rated for indoor use
• Not suitable for dimming

36W 600mm x 600mm, Integrated LED Panel with Anti-Virus Coating

• 30,000 hour life
• High effciency 83lm/W
• 4000K cool white colour
• IP40 rated for indoor use
• Not suitable for dimming

Features of the Anti-Viral Front Lens Coating

• Air Purifying – it purifes and degrades VOC (volatile organic compounds), Formaldehyde, NOx and SOx gases in the surrounding air.
• De-odourising – it degrades organic compounds.
• It is self-cleaning – as it prevents dirt settling on the surface and also protects the surface from corrosion over its lifetime.
• It is anti-microbial and eliminates bacteria, virus and fungi.
• The material is FDA approved (Biocidal mechanism TTA)

How does it work?

The LED panel has a special TTA nano-composite coating applied to it which provides
24-hour anti-bacterial protection. This is achieved with a three-step process.

1. The active ingredients in the coating, Titanium Dioxide (TiO2) and Silver (Ag) ions, react with sulphur (S) and hydrogen (H) in the bacteria to inhibit their reproduction.
2. A photo catalyst process generates super-oxide radicals which helps decompose bacteria.
3. The TTA coating has a surface charge which attracts bacteria and ruptures their cell membrane ultimately killing the bacteria.

Application Usage

Any environments where above average cleanliness is desired i.e. Vets, hospitals, schools, dentists, doctors surgeries, spa’s, hairdressers, nail salons and beauticians.

• Built-in safety isolating control gear with short circuit protection
• Long life 35,000 hours maintenance free operation
• IP66 rated suitable for outdoor use
• 1100lm useful lumens
• 1300lm total lumens
• 4000K cool white colour
• Available in Black or white finish with opal diffuser
• Constructed from tough polycarbonate with IK10 impact rating
• Instant full light
• Not suitable for dimming

• Energy efficient integrated LED downlight with loop in/loop out terminal block
• IP44 rated suitable for bathroom zones 1 and 2
• Constructed from corrosion resistant plastic
• Includes 1m cable pre-wired to input
• 4000K cool white colour temperature
• Not suitable for dimming

• High frequency for fliker free illumination – helps to eliminate eye strain
• 3300lm useful lumens, 3500lm total lumens
• Aluminium construction
• 4000K Cool White colour
• Ambient operating temperature -20oC to 45oC
• Instant full light
• IP20 rated for indoor use only
• Not suitable for dimming

• Hollow ring design with diffused light emitting from inner surface
• 40,000 hours long life
• Suitable for home use, office, hotel, restaurants and more
• 2000lm useful, 2200lm total lumens
• Constructed from corrosion resistant plastic
• 3000K warm white and 4000K cool white colour options
• Instant full light
• Not suitable for dimming

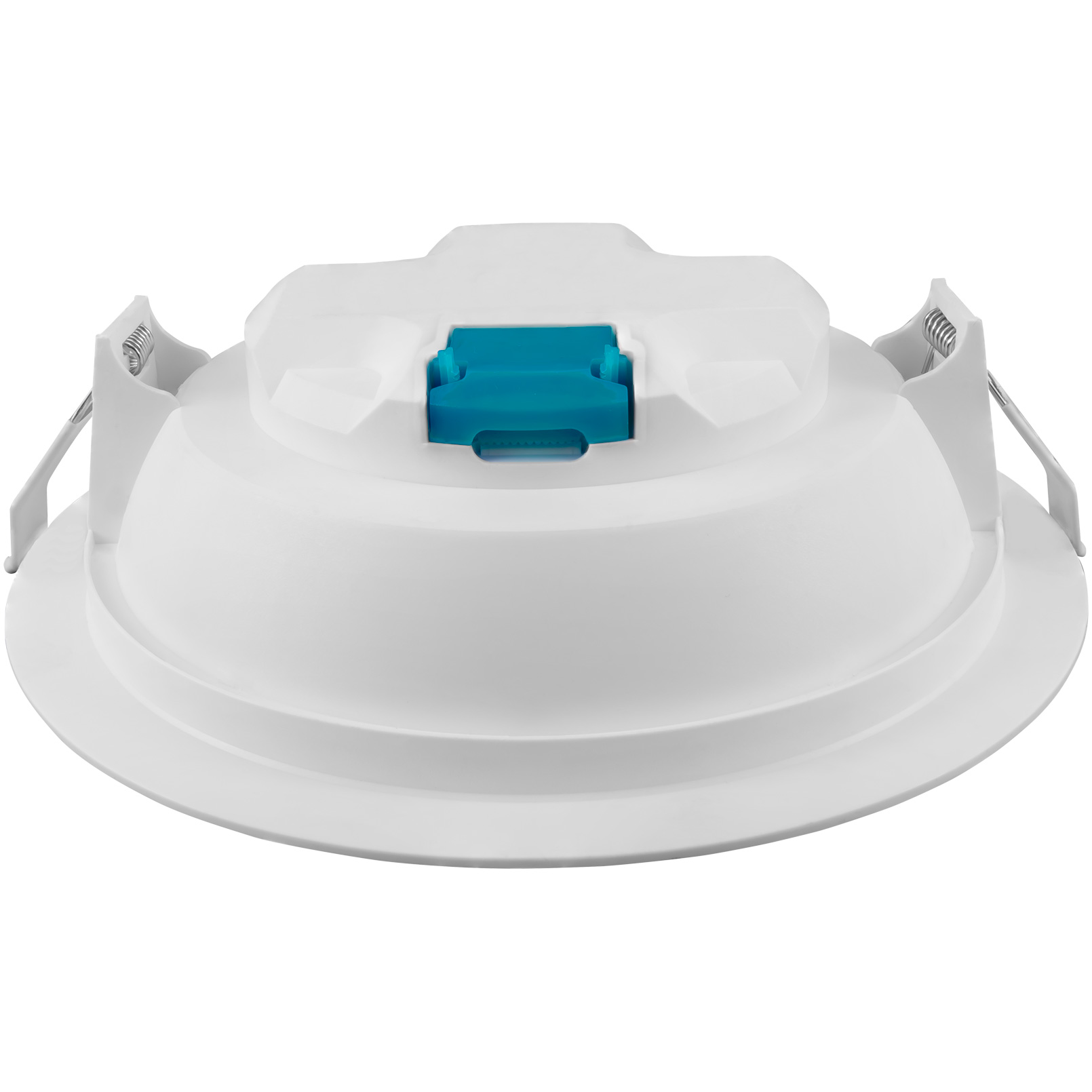

Surface Mounted Downlight (8878,6348)

• Supplied with both ring style and full back mounting bracket

Drop Pendant Downlight (8885, 6355)

• Adjustable drop length from 150mm – 1500mm

• Polycarbonate non-corrosive fttings with integrated LED light source
• IP65 rating for outdoor use
• 30,000 hour life
• 4000K cool white colour
• 120° beam angle
• IK06 impact rating
• Available in 4ft and 5ft
• Available in standard, and emergency mode versions
• Emergency version has integrated 3 hour emergency battery*

• Tough and lightweight aluminium construction
• Smooth body design helps prevent dust build-up
• High efficiency 100lm/W
• IP65 rated for indoor/outdoor use
• Glass-free lens suitable for farming and agriculture
• Driver housing away from body to maximise ventilation and dissipate heat

• Fitted with 1.5 metre TRS cable and 10mm heat-resistant rubber gasket
• IP65 rated Mean Well driver (ELG-A Series) with constant current and
  constant voltage operation for long-life performance
